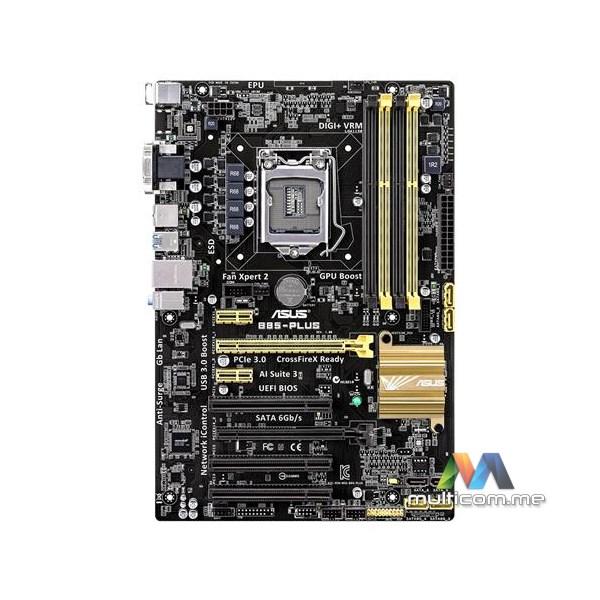

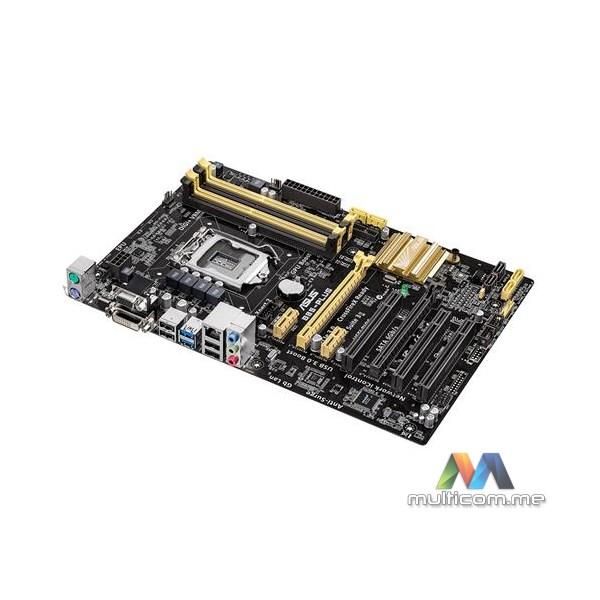

ASUS B85-PLUS 90MB0EG0-M0EAY5 Maticna ploca

ASUS B85-PLUS, 1150, Intel® B85, DDR3, Broj utora 4, 1333,1600 MHz, PCI 3, PCIe x16 1, PCIe x4 1, PCIe x1 2, SATA II 2, SATA3 4, 6-kanalni audio, 1x 10/100/1000 Ethernet, USB 3.0 2, USB 2.0 2, ATX

• ASUS 5X Protection - All-round protection provides the best quality, reliability, and durability
• New UEFI BIOS – Friendlier, easier, and more intuitive with helpful info added
• Fan Xpert 2 - Comprehensive controls for the perfect cool and quiet balance
• USB 3.0 Boost (UASP Support) - 170% faster transfer speeds than traditional USB 3.0
• Network iControl - Real-time network bandwidth management

Specification

• CPU
  Intel® Socket 1150 for 4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 22 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list
• Chipset
  Intel® B85
• Memory
  4 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 Mhz.
• Graphic
  Integrated Graphics Processor
  Multi-VGA output support : DVI/RGB ports
  - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
• Multi-GPU Support
  Supports AMD Quad-GPU CrossFireX™ Technology
• Expansion Slots
  1 x PCIe 3.0/2.0 x16 (x16 mode, yellow)
  1 x PCIe 2.0 x16 (x4 mode, dark brown)
  2 x PCIe 2.0 x1
  3 x PCI
• Storage
  Intel® B85 chipset :
  4 x SATA 6Gb/s port(s), yellow
  2 x SATA 3Gb/s port(s), dark brown
  Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology *1
• LAN
  Realtek® 8111G, 1 x Gigabit LAN Controller(s)
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC *2
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• USB Ports
  Intel® B85 chipset :
  4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board)
  Intel® B85 chipset :
  8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board)
• Special Features
  ASUS 5X Protection :
  - ASUS DIGI+ VRM - 4 Phase digital power design
  - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
  - ASUS ESD Guards - Enhanced ESD protection
  - ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
  - ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - GPU Boost
  - AI Suite 3
  - Ai Charger
  - Anti-Surge
  - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
  - Network iControl
  - USB 3.0 Boost
  - Disk Unlocker
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert 2
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 2
  ASUS Q-Design :
  - ASUS Q-Slot
• Operating System Support
  Windows® 8.1
  Windows® 8
  Windows® 7

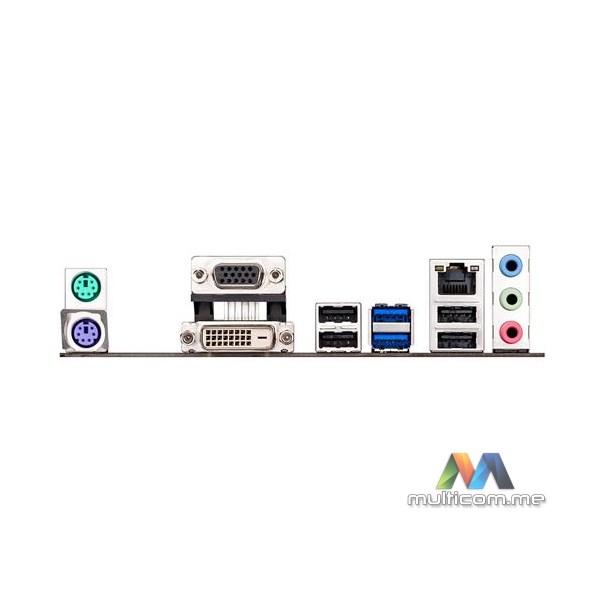

• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI
  1 x D-Sub
  1 x LAN (RJ45) port(s)
  2 x USB 3.0
  4 x USB 2.0
  3 x Audio jack(s)
• Internal I/O Ports
  1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  2 x SATA 3Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)

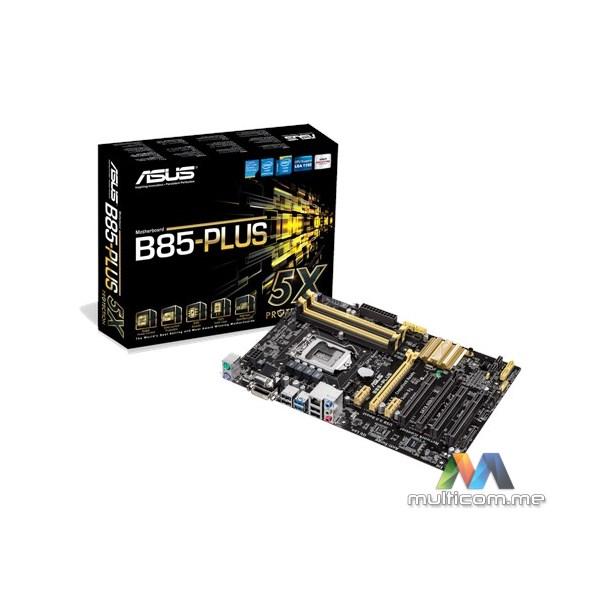

• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability
  WfM 2.0, DMI 2.0, WOL by PME, PXE
• Support Disc
  Drivers
  ASUS Utilities
  EZ Update
  Anti-virus software (OEM version)
• Form Factor
  ATX Form Factor
  12.0 inch x 8.2 inch ( 30.5 cm x 20.8 cm )
