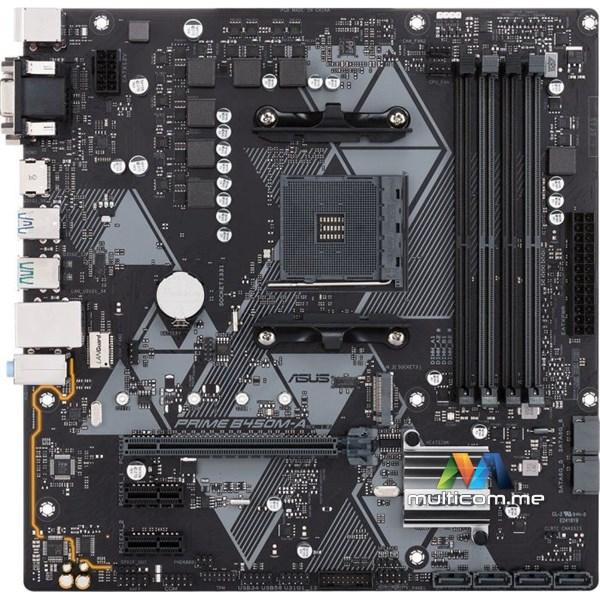

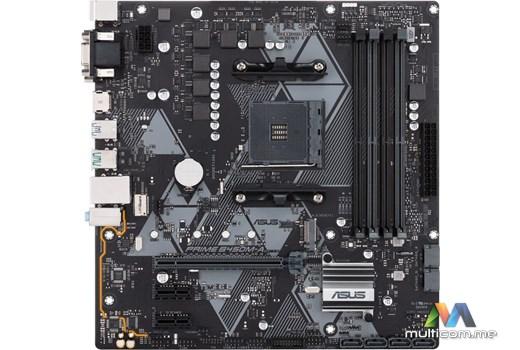

ASUS 90MB0YR0-M0EAY0 Maticna ploca

ASUS PRIME B450M-A, AM4, AMD B450, DDR4, Broj utora 4, 2133,2400,2666,2800,3000,3200 MHz, PCIe 3.0 x16 1, PCIe x1 2, SATA3 6, RAID 0,1, 8-kanalni audio, 1x 10/100/1000 Ethernet, USB 2.0 2, mATX, M.2 1, USB 3.1 6 - 90MB0YR0-M0EAY0

• CPU

  AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors

• Chipset

  AMD B450

• Memory

  AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
  4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
  Dual Channel Memory Architecture
  ECC Memory (ECC mode) support varies by CPU.


• Graphic

  Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors
  Multi-VGA output support : HDMI/DVI-D/D-Sub ports
  - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
  - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

• Expansion Slots

  AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
  1 x PCIe 3.0/2.0 x16 (x16 mode)
  AMD Ryzen™ with Radeon™ Vega Graphics Processor
  1 x PCIe 3.0/2.0 x16 (x8 mode) *1
  AMD B450 chipset
  2 x PCIe 2.0 x1

• Storage

  AMD B450 chipset :
  4 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
  AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
  2 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
  AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2

• LAN

  Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
  ASUS LAN Guard

• Audio

  Realtek® ALC887 8-Channel High Definition Audio CODEC
  Audio Feature :
  - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

• USB Ports

  AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation :
  4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
  AMD B450 chipset :
  2 x USB 3.1 Gen 2 port(s) (2 at back panel, )
  AMD B450 chipset :
  2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
  AMD B450 chipset :
  4 x USB 2.0/1.1 port(s) (4 at mid-board)

• Special Features

  ASUS 5X Protection III :
  - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
  - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  - ASUS Overvoltage Protection: World-class circuit-protecting power design
  - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  - ASUS DIGI+ VRM: 6 Phase digital power design
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert 2+
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  - Multi-language BIOS
  ASUS Q-Design :
  - ASUS Q-Slot
  - ASUS Q-DIMM

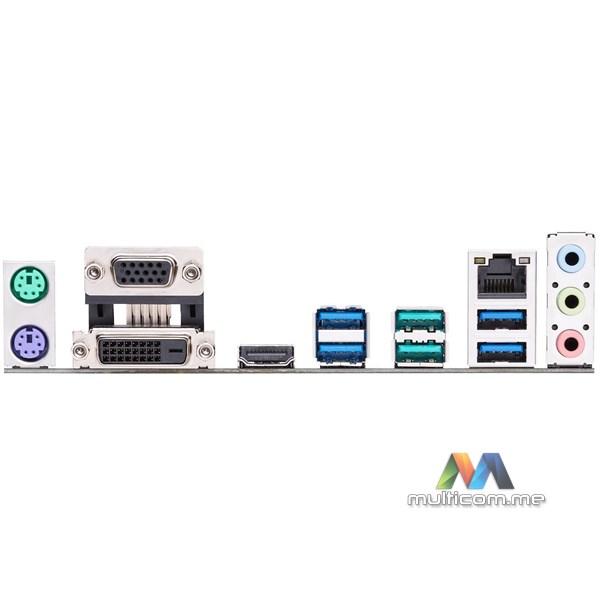

• Back I/O Ports

  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.1 Gen 2
  4 x USB 3.1 Gen 1 ,
  3 x Audio jack(s)

• Internal I/O Ports

  1 x Aura RGB Strip Header
  1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x TPM header
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x Speaker connector

• Accessories

  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD

• BIOS

  128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

• Operating System

  Windows® 10 64-bit

• Form Factor

  Micro ATX Form Factor
  9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )

• Note

  1*Support NVMe PCIe RAID.
  2*The M.2 Socket shares bandwidth with the SATA_5/6 ports, and therefore the SATA_5/6 ports cannot be used when an M.2 device is installed.
